Full automation cold steel strip profile used c z purlin roll forming machine production line
1. Usage And Introduction Of This Production Line
The c z purlin forming machine line includes manual decoiler, main body of roll forming machine, hydraulic cutting system, PLC control system and discharge table. The users can set order as per their requirement to produce the special pieces and length products. This machine line can work automatically by PLC control system. It is easy to operate and running stably.
Our roll forming machine can be profile custom,and are lower cost,high efficiency,reliable working ,low energy consumption.we can do any type of equipment according to customer requirements.
2. General parameters of roll forming machine production line
| Hydraulic C/Z purlin roll forming machine |
| Items | Specifications |
| Material of coil | Material Thickness | 2.5-3mm |
| Main frame | Material | 400H-beam steel |
| Wall plate | welded steel plate |
| Reducer | 8# cycloid reducer |
| De-coiler | Weight | 3 ton manual decoiler |
| Roll Forming system | Rolling Speed | 0-12 m/min |
| Roller Stations | About 14 stations forming |
| Roller Material | GCR15 steel with Hard chromium plated on the surface |
| Diameter of shaft | 80 solid |
| Shaft Material | 45# Steel Diameter 80mm shaft |
| Maim Motor Power | 15 kw |
| Hydraulic cutting Power | 5.5 kw |
| Cutting | Material Of Cutting | CR12 with quench treatment |
| Tolerance | ±1mm |
| Cutting blade | hydraulic shearing |
| Electrical control system | Electric Source | 380V, 50HZ, 3phase |
| Control System | PLC(Delta) with touch screen |
| Weight | About 6 tons |
| Way Of Drive | By chain(2.0 inch) link bearing model 6210 |
| Size of machine | 8.2m*1.2m*1.2m |
3. After-sales service
3.1. we can produce the special machine,send your drawing to us,we can design for you.
3.2. if you buy our products,we also can help you to purchase the material,like color roll,the price is lower than you buy by yourself.
3.3. we provide a one year warranty and lifelong technical support, we can send our technicians to you to give you on-site training.
The training period would be for no more than one week with the customer paying for the visa, return ticket, food, accommodations and a daily wage of US100.
3.4. engineers available to service machinery overseas.
3.5. if you come to visit our factory,we can book the room for you, car pick up to send.
3.6. One-Years product warranty.
3.7. Training and installation available.
4. FAQ (about our roll forming machine)
4.1:- Can you finish the machine during the delivery time?
- We will finish the machine in time according to determined lead time.
4.2:- Can you provide some spare parts?
- Yes, of course. The quick-wear parts are sent to you together with the machine.
4.3:- Do you have any other service?
- We can manufacture, design, installation and debug various roll forming machines including standard and customized machines.
It is free to assemble machine and train your works, but the buyer should pay for the round-trip airplane ticket, and arrange accommodation during that time.
4.4:- Can you accept OEM?
- We can accept OEM.
4.5:- Any certification:
- Yes, we have CE TUV BV certification.
4.6: Can you make the machine according to my design or photo type?

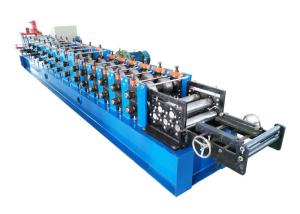

5. Roll forming machine pictures:
